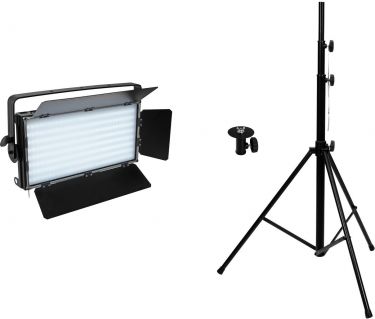

Eurolite Set LED PLL-480 CW/WW + Stand

10A95L88

10.379,00NOK

The price includes 25% Danish VAT

Delivery time: 4-8 workdays.

DMX-controlled surface light with 240 cold white and 240 warm white LEDs incl. steel stand

Energy-saving, durable and environmentally friendly
Frost filter provides a soft, homogeneous light
4 barn doors to avoid blinding the audience and for protection during transport
Stand or truss installation
Slim, rugged metal housing
480 powerful LEDs 0.5 W SMD 2835 CW/WW (homogenous color mix)
Dimmer electronic; Dimmer speed (step response) adjustable
Strobe effect
The device is cooled by passive convection cooling
Control via DMX; master/slave function
Preprogrammed in Light´J; Light Captain
Flicker-free
With a beam angle of 120°
Variable color temperature 3200 K - 5600 K
Very high color rendering index (CRI)
With mounting bracket
LCD display
Rugged carrying handle
Mains input and output for power linking up to 8 units
Silent operation
For application areas such as: Video and photography; stage; Trade fair and shop fitting; mobile use
Application possibility: Suspended; on stand
1 x spotlight, 1 x user manual, 1 x power cord, 1 x plug (male)
Stable lighting stand for mobile use
Adjustable height
Made in Europe
1 x stand, 1 x user manual
Universal adapter allowing to mount a single spotlight
Made in Europe

Weight:	18.16 kg
EUROLITE LED PLL-480 CW/WW Panel
Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	205 W
IP classification:	IP20
Protection class:	Protection class I
Power connection:	Via P-Con (blue), mounting version power supply cord with safety plug (provided)
Power output:	P-Con (gray), mounting version
Lamp type:	LED lamp
LED type:	480 x 0.5 W SMD 2835 CW/WW (homogenous color mix)
Flash rate:	3.5 - 28 Hz
DMX channels:	5
DMX input:	3-pin XLR (M) mounting version
DMX output:	3-pin XLR (F) mounting version
Cooling:	Passive convection cooling
Control:	DMX; master/slave function
Preprogrammed in:	Light´J; Light Captain
Projection:	Flicker-free
PWM frequency:	47000 Hz
Beam angle:	120°
Beam angle (1/2 peak):	120°
Color temperature:	3200K - 5600K adjustable
Color rendering index (CRI):	96 Ra
Illuminance in Lux (lx):	Cold white (CW) 1m: 3048 lx, 3m: 394 lx, 6m: 116 lx Warm white (WW) 1m: 2697 lx, 3m: 375 lx, 6m: 111 lx All 1m: 6147 lx, 3m: 764 lx, 6m: 224 lx
Lamp life:	50000 h
Luminous flux:	17470 lm
Housing color:	Black matte
Attachment system:	Mounting bracket
Display type:	LCD display
Carrying handle:	1 pc/pcs
Material:	Metal
Dimensions:	Width: 64 cm Depth: 12.5 cm Height: 33 cm
Weight:	12.60 kg
Noise classification:	Class 0 (no noise at all)
Energy efficiency class (A - G):	F
EPREL-Nr:	1066973
Mounting bracket
Diameter mounting holes:	3 x Ø12mm
Material:	Metal, 3 mm
Power cord
Cable construction:	3 x 1.5 mm² H05VV-F
Cable length:	Approx. 1.2 m
EUROLITE LS-1 EU Steel Stand
Maximum carrying capacity:	30 kg
Height:	Maximum: 315 cm Minimum: 145 cm
Attachment system:	Ø 28mm
Type (general stands):	Light stand/manual
Material:	Steel/magnesium
Color:	Black
Transport dimensions:	120 cm x 16 cm x 14 cm
Base area:	Ø 108 cm
Weight:	5.30 kg
EUROLITE LS-1A1 Adapter for LS-1
Attachment system:	Ø 29mm M8 thread
Type (general stands):	Accessory
Material:	Steel
Color:	Black, powder-coated
Dimensions:	Width: 11 cm Depth: 9 cm Height: 10 cm
Weight:	0.26 kg
