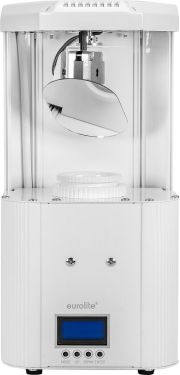

Handy scanner with 60 W COB LED, gobo and color wheel
Compact design
1 powerful LED 60 W COB (chip-on-board) cold white (CW)
Positioning within PAN and TILT
Color wheel; gobo wheel with rotating gobos; Focus manual
Color wheel with 7 dichroic filters plus open half colors selectable, Rainbow effect with adjustable speed
Gobo wheel with rotating gobos, 7 gobos and open Slot-in gobo system for easy gobo replacement
Shake effect
Integrated show programs
The device is cooled by cooling fan
Control via stand-alone; DMX; QuickDMX via USB (optional); Master/slave function; Sound to light via Microphone; W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
Flicker-free
With a beam angle of 11°
LCD display
Dimmer electronic
Preprogrammed in Light´J; Light Captain
Rubber feet
1 x moving light, 1 x user manual, 1 x power cord, 1 x mounting bracket, 3 x gobos
Power supply:
100-240 V AC, 50/60 Hz
Power consumption:
70 W
IP classification:
IP20
Protection class:
Protection class I
Power connection:
Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
Fuse:
5 x 20 mm, T 1,5 A Fuse replaceable
Lamp type:
LED lamp
LED:
1 x 60 W COB (chip-on-board) cold white (CW)
Equipment:
Color wheel; gobo wheel with rotating gobos; Focus manual
Color generation:
Color wheel with 7 dichroic filters plus open Half colors selectable, Rainbow effect with adjustable speed
Gobos:
Gobo wheel with rotating gobos, 7 gobos and open Outside diameter 10mm Image diameter 14mm Slot-in gobo system for easy gobo replacement Shake effect
DMX channels:
10
DMX input:
3-pin XLR (M) mounting version
DMX output:
3-pin XLR (F) mounting version
Cooling:
Cooling fan
Control:
Stand-alone; DMX; QuickDMX via USB (optional); Master/slave function; Sound to light via Microphone; W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
