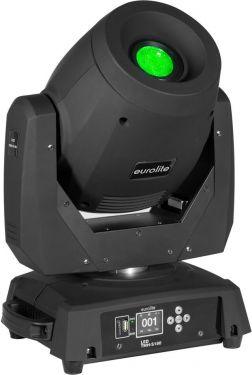

LED moving head spot with 200 W LED, rotating gobos, color wheel, prism and QuickDMX port
1 powerful LED 200 W COB (chip-on-board) cold white (CW)
Positioning within 540° PAN, 270° TILT
Auto position correction (feedback)
Exact positioning (16 bit resolution)
Gobo wheel with rotating gobos; prism 3-fold rotating; focus motor-driven
Dimmer electronic
Multi beam effect; gobo effect
Color wheel with 8 dichroic filters plus open half colors selectable, Rainbow effect with adjustable speed
Gobo wheel with rotating gobos, 7 gobos and open shake effect
Gobos changeable
Slot-in gobo system for easy gobo replacement
Integrated show programs
The device is cooled by cooling fan
Control via stand-alone; DMX; sound to light via microphone; QuickDMX via USB (optional); CRMX by LumenRadio via USB (optional); W-DMX by wireless solution via USB (optional); master/slave function
Preprogrammed in LED PC-Control 512; Light Captain
Flicker-free
With a beam angle of 10°
LCD display
Mains input and output for power linking up to 8 units
For application areas such as: Clubs/dancing school; stage; rental
Application possibility: Standing; suspended
1 x moving light, 1 x user manual, 1 x power cord, 2 x omega bracket
Power supply:
100-240 V AC, 50/60 Hz
Power consumption:
265 W
IP classification:
IP20
Protection class:
Protection class I
Power connection:
Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
Power output:
P-Con (gray), mounting version
Fuse:
5 x 20 mm, T 3.15 A fuse replaceable
Lamp type:
LED lamp
LED type:
1 x 200 W COB (chip-on-board) cold white (CW)
Max. TILT movement:
270° exact positioning (16 bit resolution) auto position correction (feedback)
Max. PAN movement:
540° exact positioning (16 bit resolution) auto position correction (feedback)
Flash rate:
2 - 10 Hz
Equipment:
Gobo wheel with rotating gobos; prism 3-fold rotating; focus motor-driven
Color generation:
Color wheel with 8 dichroic filters plus open Half colors selectable, Rainbow effect with adjustable speed
Gobos:
Gobo wheel with rotating gobos, 7 gobos and open Outside diameter 23.5mm Image diameter 15mm Shake effect Gobos changeable Slot-in gobo system for easy gobo replacement
DMX channels:
13; 15
DMX input:
3-pin XLR (M) mounting version
DMX output:
3-pin XLR (F) mounting version
Cooling:
Cooling fan
Control:
Stand-alone; DMX; sound to light via microphone; QuickDMX via USB (optional); CRMX by LumenRadio via USB (optional); W-DMX by wireless solution via USB (optional); master/slave function
Preprogrammed in:
LED PC-Control 512; Light Captain
Projection:
Flicker-free
PWM frequency:
2500 Hz
Beam angle:
10°
Beam angle (1/2 peak):
10°
Illuminance in Lux (lx):
Cold white (CW) 3m: 20700 lx, 6m: 5273 lx
Housing color:
Black
Display type:
LCD display
Dimensions:
Width: 32.5 cm Depth: 27.0 cm Height: 45.5 cm
Weight:
11.35 kg
Noise classification:
Class 3 (clearly perceptible sounds)
Legal specifications
Special product:
Not designed for household room illumination
Intended use:
Show effect lighting
