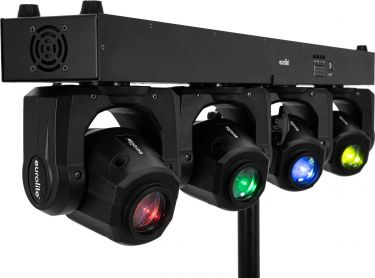

LED lighting system with 4 individually controllable 30 W moving heads, gobo- and color wheel
Crossbar with integrated DMX control unit and stand sleeve
4 powerful LEDs 30 W COB (chip-on-board)
Positioning within 540° PAN, 180° TILT
Exact positioning (16 bit resolution)
Gobo wheel with static gobos; focus manual; color wheel
Dimmer electronic
Strobe effect; beam effect
Color wheel with 7 dichroic filters plus open half colors selectable, Rainbow effect with adjustable speed
Gobo wheel with static gobos, 7 gobos and open shake effect
The device is cooled by temperature-controlled fan
Control via stand-alone; DMX; sound to light via microphone; master/slave function; QuickDMX via USB (optional); CRMX by LumenRadio via USB (optional); W-DMX by wireless solution (optional)
Preprogrammed in Colorchief; Light´J; Light Captain
Flicker-free
With a beam angle of 13°
With omega bracket
4 digit 7-segment LED display
Rubber feet
Mains input and output for power linking up to 8 units
For application areas such as: Clubs/dancing school; wedding/gala/events; party room; mobile djs / entertainer
Application possibility: Standing; suspended; on stand
1 x moving light, 1 x user manual, 1 x power cord, 2 x omega bracket, 2 x safety eyelet
Power supply:
100-240 V AC, 50/60 Hz
Power consumption:
100 W
IP classification:
IP20
Protection class:
Protection class I
Power connection:
Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
Power output:
P-Con (gray), mounting version
Fuse:
5 x 20 mm, T 2 A fuse replaceable
Lamp type:
LED lamp
LED type:
4 x 30 W COB (chip-on-board)
Max. TILT movement:
180° positioning; exact positioning (16 bit resolution)
Max. PAN movement:
540° positioning; exact positioning (16 bit resolution)
Flash rate:
2 - 14 Hz
Equipment:
Gobo wheel with static gobos; focus manual; color wheel
Color generation:
Color wheel with 7 dichroic filters plus open Half colors selectable, Rainbow effect with adjustable speed
Gobos:
Gobo wheel with static gobos, 7 gobos and open Shake effect
DMX channels:
3; 5; 9; 11; 17; 21; 30; 38
DMX input:
3-pin XLR (M) mounting version
DMX output:
3-pin XLR (F) mounting version
Cooling:
Temperature-controlled fan
Control:
Stand-alone; DMX; sound to light via microphone; master/slave function; QuickDMX via USB (optional); CRMX by LumenRadio via USB (optional); W-DMX by wireless solution (optional)
