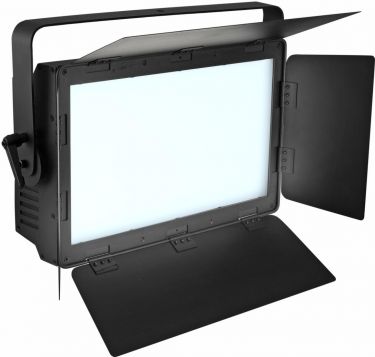

Eurolite LED PLL-704 6000K Panel

10B01C60

8.229,00NOK

The price includes 25% Danish VAT

Delivery time: 4-8 workdays.

DMX-controlled surface light with 704 cold white LEDs, QuickDMX port and barn doors

Energy-saving, durable and environmentally friendly
4 barn doors to avoid blinding the audience and for protection during transport
Slim, rugged metal housing
704 powerful LEDs SMD 2835 cold white (CW)
Pulse-width modulation variable
The device is cooled by passive convection cooling
Control via stand-alone; DMX; quick select potentiometer for brightness and flash rate; master/slave function; sound to light via microphone; W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); QuickDMX via USB (optional)
Preprogrammed in Light Captain; Light´J
Flicker-free
With a beam angle of 120°
Good color rendering index (CRI)
With mounting bracket
LCD display
Rugged carrying handle
Mains input and output for power linking up to 8 units
For application areas such as: Video and photography; stage; Trade fair and shop fitting; mobile use
Silent operation
Application possibility: Suspended; on stand
1 x spotlight, 1 x power cord, 1 x user manual

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	140 W
Power connection:	Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
Power output:	P-Con (gray), mounting version
Fuse:	T 3 A fuse replaceable
Lamp type:	LED lamp
LED type:	704 x SMD 2835 cold white (CW)
Flash rate:	0 - 20 Hz
DMX channels:	1; 2; 3
DMX input:	3-pin XLR (M) mounting version
DMX output:	3-pin XLR (F) mounting version
Cooling:	Passive convection cooling
Control:	Stand-alone; DMX; quick select potentiometer for brightness and flash rate; master/slave function; sound to light via microphone; W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); QuickDMX via USB (optional)
Fixtures available for:	Light Captain; Light´J
Projection:	Flicker-free
Beam angle (1/2 peak):	120°
Color temperature:	6000K
Color rendering index (CRI):	80 Ra
Illuminance in Lux (lx):	Cold white (CW) 1m: 4111 lx, 3m: 598 lx, 6m: 182 lx
Housing color:	Black
Attachment system:	Mounting bracket
Display type:	LCD display
Carrying handle:	1 pc/pcs
Dimensions:	Width: 56.5 cm Depth: 25.5 cm Height: 42.2 cm
Weight:	7.70 kg
Noise classification:	Class 0 (no noise at all)
Photobiological safety:	Risk Group 0
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting
