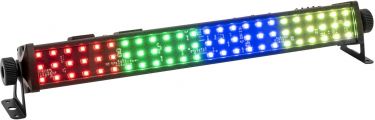

Eurolite LED PIX-72 RGB Bar

10B00L65

~~1.089,00NOK~~ 969,00NOK

The price includes 25% Danish VAT

Delivery time: 4-8 workdays.

Bar (50 cm) with 72 wide beam RGB LEDs, 4 segments

72 powerful LEDs SMD 5050 3in1 TCL RGB (homogenous color mix) 4 segments controlled separately
Dimmer electronic; color blend stepless; color change adjustable; colors preset
Strobe effect
The device is cooled by passive convection cooling
Control via stand-alone; DMX; master/slave function; sound to light via microphone
Preprogrammed in Light Captain; EASY SHOW 1; EASY SHOW 2; EASY SHOW 3; Colorchief
Flicker-free
With a beam angle of 120°
With mounting bracket
4 digit 7-segment LED display
Mains input and output for power linking up to 8 units
For application areas such as: Clubs/dancing school; party room; restaurants, bars and hotels; mobile djs / entertainer
Silent operation
Application possibility: Suspended; wall mounting
M8 thread
1 x light effect, 1 x power cord, 2 x mounting bracket, 2 x knurled screw, 2 x washer, 1 x user manual

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	15 W
IP classification:	IP20
Protection class:	Protection class I
Power connection:	Mains input via IEC connector (M) mounting version power supply cord with safety plug included
Power output:	IEC connector (F) mounting version
Fuse:	T 0.5 A fuse replaceable
Lamp type:	LED lamp
LED type:	72 x SMD 5050 3in1 TCL RGB (homogenous color mix)
Flash rate:	0 - 20 Hz
DMX channels:	3; 5; 6; 12
DMX input:	3-pin XLR (M) mounting version
DMX output:	3-pin XLR (F) mounting version
Cooling:	Passive convection cooling
Control:	Stand-alone; DMX; master/slave function; sound to light via microphone
Preprogrammed in:	Light Captain; EASY SHOW 1; EASY SHOW 2; EASY SHOW 3; Colorchief
Projection:	Flicker-free
Beam angle:	120°
Beam angle (1/2 peak):	120°
Housing color:	Black
Attachment system:	2x mounting bracket
Display type:	4 digit 7-segment LED display
Material:	Aluminum casting
Dimensions:	Length: 56.5 cm Depth: 7.0 cm Height: 9.0 cm
Weight:	1.03 kg
Noise classification:	Class 0 (no noise at all)
Power cord
Cable construction:	3 x 0.75 mm² H05VV-F
Cable length:	Approx. 1.2 m
Mounting bracket
Diameter mounting holes:	1 x Ø11mm; 2 x Ø8mm; 1 x Ø8.5mm
Material:	Metal, 2 mm
Knurled screw
Thread:	M8 thread x 16 mm
Washer
Material:	Rubber
Dimensions:	Height: 0.3 cm Diameter: Ø 2 cm
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting
