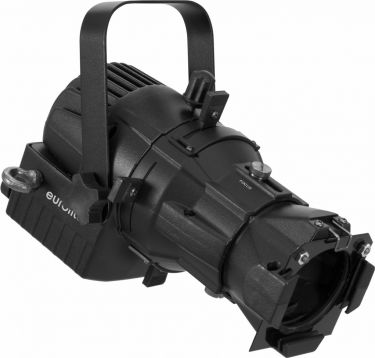

Eurolite LED PFE-20 WW Profile Spot bk

10B00D51

2.999,00NOK

The price includes 25% Danish VAT

Delivery time: 4-8 workdays.

Handy stage spotlight with 20 W COB LED, CRI >95

4 shutter blades
1 powerful LED 20 W COB (chip-on-board) warm white (WW)
Dimmer electronic
The device is cooled by passive convection cooling
Flicker-free
With a beam angle of 19°
Very high color rendering index (CRI)
With mounting bracket
For application areas such as: Trade fair and shop fitting; installation; restaurants, bars and hotels; video and photography
Silent operation
Application possibility: Suspended; on stand
M5 thread
1 x spotlight, 1 x gobo holder, 1 x filter frame, 2 x screw, 2 x washer, 1 x user manual

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	20 W
IP classification:	IP20
Protection class:	Protection class I
Power connection:	Mains input via 3-pin screw plug connector (M) mounting version power supply cord with safety plug (provided)
Fuse:	5 x 20 mm, T 0.5 A fuse replaceable
Lamp type:	LED lamp
LED type:	1 x 20 W COB (chip-on-board) warm white (WW)
Cooling:	Passive convection cooling
Projection:	Flicker-free
Beam angle:	19°
Beam angle (1/2 peak):	19°
Color temperature:	3000K
Color rendering index (CRI):	97 Ra
Illuminance in Lux (lx):	Warm white (WW) 1m: 5177 lx, 3m: 611 lx, 6m: 154 lx
Housing color:	Black matte
Attachment system:	Mounting bracket
Material:	Aluminum casting; metal; plastic
Dimensions:	Length: 22.2 cm Width: 15.8 cm Height: 20.3 cm
Weight:	1.23 kg
Noise classification:	Class 0 (no noise at all)
Gobo holder
Gobos:	Outside diameter 42mm Image diameter 18mm
Material:	Aluminum, 0.3 mm
Dimensions:	Width: 4.4 cm Height: 10.1 cm Diameter: Ø 3.4 cm
Power cord
Cable construction:	3 x 0.75 mm² H05VV-F
Cable length:	Approx. 1.4 m
Filter frame
Dimensions:	Width: 6.9 cm Height: 6.9 cm Diameter: Ø 5.6 cm
Mounting bracket
Diameter mounting holes:	1 x Ø11mm; 2 x Ø7mm
Material:	Aluminum casting, 2 mm
Screw
Thread:	M5 thread x 11 mm
Washer
Material:	Plastic
Color:	Pink
Dimensions:	Height: 0.1 cm Diameter: Ø 1.2 cm
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting
