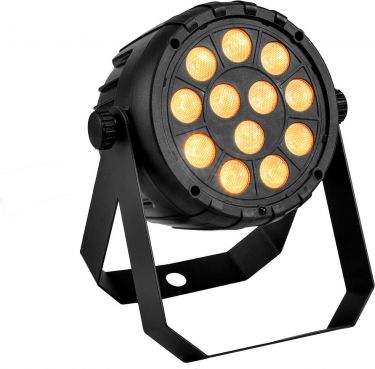

Compact spotlight with 12 x 5 W 4in1 QCL RGB/WW LED and DMX control
12 powerful LEDs 5 W COB (chip-on-board) 4in1 QCL RGB/WW (homogenous color mix)
Color blend stepless; color change programs; Dimmer electronic
Strobe effect
10 integrated show programs
Direct color selection for 20 preset colors
The device is cooled by passive convection cooling
Control via stand-alone; sound to light via microphone; master/slave function; DMX; IR remote control (optional); QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
Preprogrammed in LED PC-Control 512; EASY SHOW 2; EASY SHOW 3; Light´J; Light Captain; Colorchief
Flicker-free
With a beam angle of 12°
Good color rendering index (CRI)
With double bracket
4 digit 7-segment LED display
For application areas such as: Party room; mobile djs / entertainer; small rental
Silent operation
Application possibility: Standing; suspended; on stand
1 x light effect, 2 x mounting bracket, 2 x screw, 2 x washer, 1 x user manual
Power supply:
100-240 V AC, 50/60 Hz
Power consumption:
17 W
IP classification:
IP20
Protection class:
Protection class II
Power connection:
Fixed power supply cord with Euro plug
Cable construction:
2 x 0.75 mm² H03VVH2-F
Cable length:
Approx. 1 m
Device fuse:
T 1 A fuse fix in power supply
Lamp type:
LED lamp
LED type:
12 x 5 W COB (chip-on-board) 4in1 QCL RGB/WW (homogenous color mix)
Flash rate:
0.5 - 16 Hz
DMX channels:
4; 6; 8
DMX input:
3-pin XLR (M) mounting version
DMX output:
3-pin XLR (F) mounting version
Cooling:
Passive convection cooling
Control:
Stand-alone; sound to light via microphone; master/slave function; DMX; IR remote control (optional); QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
Preprogrammed in:
LED PC-Control 512; EASY SHOW 2; EASY SHOW 3; Light´J; Light Captain; Colorchief
Projection:
Flicker-free
PWM frequency:
2000 Hz
Beam angle:
12°
Beam angle (1/2 peak):
12°
Beam angle (1/10 peak):
30°
Color temperature:
2700K
Color rendering index (CRI):
83 Ra
Housing color:
Black
Attachment system:
Double bracket
Display type:
4 digit 7-segment LED display
Material:
Plastic
Dimensions:
Length: 9 cm Width: 15.5 cm Height: 19 cm Diameter: Ø 12.5 cm
Weight:
0.60 kg
Noise classification:
Class 0 (no noise at all)
Mounting bracket
Diameter mounting holes:
1 x Ø13mm; 2 x Ø6mm
Material:
Metal, 1.5 mm
Legal specifications
Special product:
Not designed for household room illumination
Intended use:
Show effect lighting
