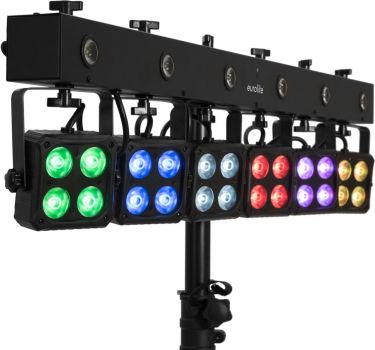

Crossbar with integrated DMX control unit and stand sleeve
Movable and tiltable spotlights
Dimmer electronic; color blend stepless; color change adjustable; colors preset
Strobe effect
The device is cooled by passive convection cooling
Control via IR remote control; stand-alone; sound to light via microphone; DMX; master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
Preprogrammed in EASY SHOW 1; Light Captain; EASY SHOW 2; EASY SHOW 3; Light´J; Colorchief
Flicker-free
With a beam angle of 9°
4 digit 7-segment LED display
For application areas such as: Party room; mobile use; mobile djs / entertainer; small rental
Silent operation
Application possibility: Suspended; on stand
4 powerful LEDs 8 W SMD 9080 4in1 QCL RGBW (homogenous color mix) 6 spots controlled separately
6 powerful LEDs 1 W SMD 8072 cold white (CW) LEDs controlled separately
1 x device, 1 x bag, 1 x remote control, 1 x battery, 1 x power cord, 1 x user manual
Power supply:
100-240 V AC, 50/60 Hz
Power consumption:
90 W
IP classification:
IP20
Protection class:
Protection class I
Power connection:
Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
Power output:
2 x IEC connector (F) mounting version
Fuse:
T 1 A fuse replaceable
Lamp type:
LED lamp
Flash rate:
0.3 - 22 Hz
DMX channels:
3; 4; 6; 8; 9; 11; 21; 24; 29
DMX input:
3-pin XLR (M) mounting version
DMX output:
3-pin XLR (F) mounting version
Cooling:
Passive convection cooling
Control:
IR remote control; stand-alone; sound to light via microphone; DMX; master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
Fixtures available for:
EASY SHOW 1; Light Captain; EASY SHOW 2; EASY SHOW 3; Light´J; Colorchief
Projection:
Flicker-free
PWM frequency:
2700 Hz
Beam angle:
9°
Beam angle (1/2 peak):
9°
Beam angle (1/10 peak):
18
Housing color:
Black
Attachment system:
Tube: 1x Ø 35mm
Display type:
4 digit 7-segment LED display
Dimensions:
Width: 92.6 cm Depth: 14.6 cm Height: 26.7 cm
Weight:
6.00 kg
Noise classification:
Class 0 (no noise at all)
Photobiological safety:
Risk Group 0
Spotlight
LED type:
4 x 8 W SMD 9080 4in1 QCL RGBW (homogenous color mix)
Remote control
Battery:
1 x button cell 3.0 V CR2025 lithium manganese built-in
Bar
LED type:
6 x 1 W SMD 8072 cold white (CW)
Legal specifications
Special product:
Not designed for household room illumination
Intended use:
Show effect lighting
