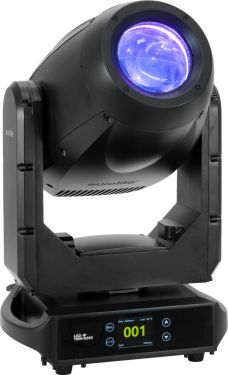

Eurolite LED IP TMH-S250 Moving Head Beam/Spot/Wash
10B07F08
19.279,00NOK
The price includes 25% Danish VAT
Delivery time: 4-8 workdays.
Power supply:
100-240 V AC, 50/60 Hz
Power consumption:
310 W
IP classification:
IP65
Protection class:
Protection class I
Power connection:
Mains input via IP T-Con (M) mounting version power supply cord with safety plug
Cable construction:
3 x 1.5 mm² H05RN-F
Power output:
IP T-Con (F) mounting version
Fuse:
5 x 20 mm, T 4 A fuse replaceable
Lamp type:
LED lamp
LED type:
1 x 250 W COB (chip-on-board) cold white (CW)
Max. TILT movement:
240° exact positioning (16 bit resolution) auto position correction (feedback)
Max. PAN movement:
540° exact positioning (16 bit resolution) auto position correction (feedback)
Flash rate:
1 - 20 Hz
Equipment:
Focus motor-driven; prism 4-fold rotating; frost filter; color wheel; gobo wheel with static gobos; gobo wheel with rotating gobos; zoom motor driven
Color generation:
Color wheel with 10 dichroic filters plus open Half colors selectable, Rainbow effect with adjustable speed in both directions
Gobos:
Gobo wheel with static gobos, 8 gobos and open Gobo wheel with rotating gobos, 8 gobos and open Outside diameter 15.7mm Image diameter 10mm Slot-in gobo system for easy gobo replacement
DMX channels:
18; 19; 23
DMX input:
3-pin XLR (M) mounting version IP 5-pin XLR (M) mounting version IP
DMX output:
3-pin XLR (F) mounting version IP 5-pin XLR (F) mounting version IP
Cooling:
1 x low-noise cooling fan at the base 5 x temperature-controlled fan at the head
Control:
DMX; RDM; master/slave function; stand-alone; sound to light via microphone
Fixtures available for:
Light Captain; GDTF (GrandMA3)
Projection:
Flicker-free
PWM frequency:
4000 Hz
DMX features:
RDM For bidirectional communication over the DMX line
DMX fail mode:
Hold; blackout; auto
Beam angle:
4° - 35°
Beam angle (1/2 peak):
4 - 35°
Beam angle (1/10 peak):
4 - 35°
Housing color:
Black
Attachment system:
2x omega bracket
Display type:
Multicolor LCD display
Carrying handle:
2 pc/pcs
Transport aid:
4 x rubber feet
Diameter mounting holes:
2 x Ø12mm
Use of brands:
Built with SEETRONIC connector
Material:
Aluminum casting
Dimensions:
Width: 32.0 cm Depth: 22.5 cm Height: 54.0 cm
Weight:
15.25 kg
Noise classification:
Class 2 (slight noise)
Legal specifications
Special product:
Not designed for household room illumination
Intended use:
Show effect lighting
