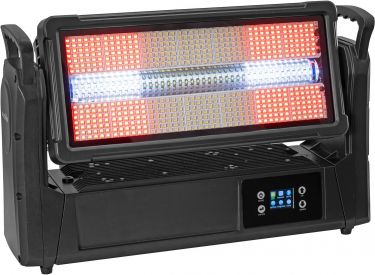

Outdoor spotlight (IP65) with tilt motor for strobe, blinder and matrix effects
126 powerful LEDs 3 W SMD 3535 cold white (CW) 7 segments controlled separately
588 powerful LEDs 0,25 W SMD 5050 4in1 QCL RGBW (homogenous color mix) 14 segments controlled separately
Positioning within 200° TILT
Dimmer
Color macros adjustable; Dimmer electronic; color blend stepless; program speed adjustable; program selection adjustable; color animations with two adjustable colors
Matrix effect; strobe effect; Blinder effect
46 integrated show programs
The device is cooled by cooling fan at the base; temperature-controlled fan at the Head
Control via DMX; RDM; stand-alone; master/slave function
Preprogrammed in Light Captain
Flicker-free
With a beam angle of 120°
With omega bracket
Multicolor TFT display
2 Rugged carrying handles
4 x rubber feet
Mains input and output for power linking up to 8 units
Built with SEETRONIC connector
Suitable for outdoor use IP65
With pressure compensation membrane
For application areas such as: Architecture; mobile use; stage; rental
Application possibility: Standing; suspended
1 x device, 1 x user manual, 1 x power cord, 2 x omega bracket
Power supply:
100-240 V AC, 50/60 Hz
Power consumption:
365 W
IP classification:
IP65
Protection class:
Protection class I
Power connection:
Mains input via IP T-Con (M) mounting version power supply cord with safety plug
Cable construction:
3 x 1,5 mm² H07RN-F
Power output:
IP T-Con (F) mounting version
Lamp type:
LED lamp
LED type:
126 x 3 W SMD 3535 cold white (CW) 588 x 0,25 W SMD 5050 4in1 QCL RGBW (homogenous color mix)
Max. TILT movement:
200° positioning auto position correction (feedback)
Flash rate:
0,5 - 17 Hz
Equipment:
Dimmer
DMX channels:
8; 9; 11; 12; 17; 18; 71
DMX input:
3-pin XLR (M) mounting version IP 1 x 5-pin XLR (M) mounting version IP
DMX output:
3-pin XLR (F) mounting version IP 1 x 5-pin XLR (F) mounting version IP
Cooling:
1 x cooling fan at the base 2 x temperature-controlled fan at the Head
Control:
DMX; RDM; stand-alone; master/slave function
Preprogrammed in:
Light Captain
Projection:
Flicker-free
PWM frequency:
4100 Hz
Beam angle:
120°
Beam angle (1/2 peak):
Matrix effect 120°
Beam angle (1/10 peak):
Matrix effect 170°
Housing color:
Black
Attachment system:
2x omega bracket
Display type:
Multicolor TFT display
Carrying handle:
2 pc/pcs
Transport aid:
4 x rubber feet
Use of brands:
Built with SEETRONIC connector
Material:
Aluminum casting
Dimensions:
Width: 52,5 cm Depth: 14,0 cm Height: 33,5 cm
Weight:
12,85 kg
Noise classification:
Class 2 (slight noise)
Legal specifications
Special product:
Not designed for household room illumination
Intended use:
Show effect lighting
