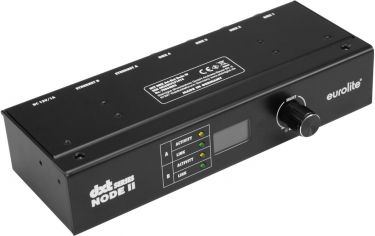

Eurolite DXT DMX Pixel Art-Net Node II

10A98E07

~~4.599,00NOK~~ 4.289,00NOK

The price includes 25% Danish VAT

Delivery time: 4-8 workdays.

Art-Net interface for control of 1024 digital LED channels or DMX channels

2 x 3-pin output for digital LED strips
Link and activity LED for each network port
Supported by all applications with Art-Net output
ArtDMX reception via Broadcast or Unicast
Configuration with OLED display, website or Art-Net
Available settings: IP address / Subnet mask / Art-Net ShortName / Art-Net LongName / Art-Net Net / Art-Net Subnet / Art-Net Universe
DMX refresh rate: 40 Hz or 20 Hz
LED types: WS2801, WS2811, WS2812,...(all common 800 kHz types)
Can transmit up to 1024 DMX channels
Control via Art-Net
OLED display
Built with NEUTRIK connector
Desktop console housing 1 U
(19) 48.3 cm rack installation (optional)
Made in Germany

Power supply:	100-240 V AC, 50/60 Hz 12V DC 1000 mA
Power consumption:	3 W
IP classification:	IP20
Power connection:	Mains input via 4-pin screw plug connector (M) mounting version power supply cord with AC adapter
DMX channels:	Output 1024
DMX output:	2 x 3-pin XLR (F) mounting version
Network connection:	Protocol: Ethernet TCP/IP via 2x RJ-45 etherCON (F) mounting version, 10/100 Mbit/s Standard: IEEE 802.3u
Control:	Art-Net
Display type:	OLED display
Control elements:	Encoder
Status LED:	Signal, link
Connections:	Output: 2 x screw plug-in terminal 2 x RJ-45 etherCON (F) mounting version
Use of brands:	Built with NEUTRIK connector
Color:	Black
Housing design:	Desktop console housing 1 U (19") 48.3 cm rack installation (optional)
Dimensions:	Width: 20 cm Depth: 9.8 cm Height: 4.1 cm
Weight:	0.85 kg
