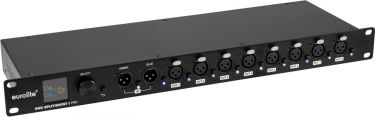

 | Categories |  | |  | Manufacturers | | | | | | Information | | | | | | Eurolite DMX Split/Boost 8 PRO 3-pin 10B06B65
Delivery time: 4-8 workdays. | |
| |
| | 2 in/8 out DMX splitter/merger with RDM support and real-time DMX monitoring - DMX modes: LTP, HTP, merge or backup
- (19) 48.3 cm rack installation 1 U
- Each DMX output with independent driver and status indicator
- Control via RDM
- Multicolor OLED display
- Mains input and output for power linking up to 8 units
- Built with SEETRONIC connector
- For application areas such as: Installation; stage; theater; rental
- Silent operation
- Application possibility: Standing
- 1 x device, 1 x power cord, 1 x user manual
| Power supply: | 100-240 V AC, 50/60 Hz | | Power consumption: | 5 W | | IP classification: | IP20 | | Protection class: | Protection class I | | Power connection: | Mains input via P-Con (blue), mounting version power supply cord with safety plug | | Cable construction: | 3 x 1.0 mm² H05VV-F | | Cable length: | 1.45 m | | Power output: | P-Con (gray), mounting version | | Fuse: | 5 x 20 mm, T 1 A fuse replaceable | | DMX input: | 2 x 3-pin XLR (M) mounting version | | DMX output: | 8 x 3-pin XLR (F) mounting version separate (galvanic) with independent driver and status indicator | | Control: | RDM | | Housing color: | Black | | Attachment system: | M10 thread | | Display type: | Multicolor OLED display | | Use of brands: | Built with SEETRONIC connector | | Material: | Metal | | Housing design: | (19") 48.3 cm rack installation 1 U | | Mounting depth: | 23 cm | | Dimensions: | Width: 48.3 cm Depth: 16 cm Height: 4.4 cm | | Weight: | 2.23 kg | | Noise classification: | Class 0 (no noise at all) |

| | | | |
