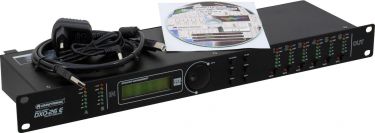

 | Kategorier |  | |  | Produsenter | | | | | | Informasjon | | | | | | Omnitronic DXO-26E Digital Controller 10A20G69 | 10356341
Leveringstid: 6 til 10 dager. | |
| |
| | Digital Speaker Management System with 2 inputs and 6 outputs, incl. software Digitale Stereo-Aktiv-Frequenzweiche mit 2 Eingängen und 6 Ausgängen, inkl. Software - Flexible routing configurations for all standard mono and stereo output operating modes
- 2 analog inputs and 6 analog outputs (XLR)
- Active crossover with Bessel, Butterworth and Linkwitz-Riley filter with slopes up to 24 dB/octave
- Up to 30 user presets storable in the device via software
- Input sensitivity digitally adjustable
- Inputs and outputs with 4-digit LED level meter as well as clip and limit LED indicator
- Mute switch with LED indicator per output
- 7-band parametric EQ per output
- Up to 7 ms signal delay adjustable for the outputs
- Output limiter with adjustable limits and automatic attack and release settings as overload protection for your amplifying system
- Switchable phase
- Lock function for prevents undesired changes to settings
- Sample rate: 67 kHz
- (19) 48.3 cm rack installation 1 U
- Digital signal processor
- Monochrome LCD display
- The device can be connected via USB to the PC in connection with DXO Software firmware can be updated
- Compatible with Win XP, Win Vista, Win 7, Win 10, OS X 10.5 or better
- For application areas such as: Clubs/dancing school; installation; mobile djs / entertainer; restaurants, bars and hotels; rental
- 1 x controller, 1 x user manual, 1 x USB cable, 1 x external mains adapter, 4 x foot, 1 x CD
| Power supply: | 100-240 V AC, 50/60 Hz 6V 800 mA | | Protection class: | Protection class III | | Power connection: | Mains input via coaxial power connector (M) mounting version power supply cord with AC adapter (provided) | | Frequency range: | 10 - 30000 Hz | | THD: | <0.005 % at 1 kHz | | DSP: | Digital signal processor | | Impedance: | Input: 10 kOhm Output: 50 Ohm | | Gain: | Output: -50 dB to +12 dB | | Filter: | Linkwitz-Riley; Butterworth; Bessel; 6db/oct; 12db/oct; 18db/oct; 24db/oct | | Delay: | 0 - 5 ms | | Dynamic range: | Input: 114 dB Output: 110 dB | | Sample rate: | 67 kHz | | Display type: | Monochrome LCD display | | Control elements: | Mute control, encoder, navigation keys | | Status LED: | Limit, clip, level meter, Mute | | Connections: | Input: line via 2 x 3-pin XLR Output: line via 6 x 3-pin XLR | | Crossover frequency: | 20-20000 Hz | | Max. level: | Input: +22 dBu Output: +9 dBu | | USB port: | Type B | | Color: | Black | | PC connect: | DXO Software via USB, firmware can be updated | | Housing design: | (19") 48.3 cm rack installation 1 U | | Dimensions: | Width: 48.3 cm Depth: 12.8 cm Height: 4.45 cm | | Weight: | 1.77 kg | | Operating system: | Win XP, Win Vista, Win 7, Win 10, OS X 10.5 or better |


| | |
