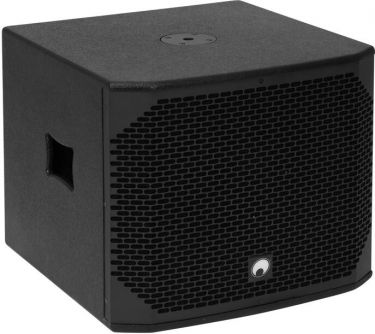

 | Categories |  | |  | Manufacturers | | | | | | Information | | | | | | Omnitronic AZX-112A PA Subwoofer active 300W 10A15E56 | 11039038
Delivery time: 4-8 workdays. | |
| |
| | Active 12" PA bassreflex subwoofer, 300 W RMS - 30 cm (12) bass speaker with 63 mm voice coil
- Class D amplifier with 300 W
- XLR inputs and parallel outputs L/R
- XLR output L/R with high-pass filter
- Adjustable crossover frequency 80-200 Hz
- Black metal grille with acoustic foam
- Rugged carrying handle
- For application areas such as: Clubs/dancing school; installation; mobile use; mobile djs / entertainer; rental
- 1 x user manual, 1 x bass, 1 x power cord
| Power supply: | 230 V AC, 50 Hz | | Power consumption: | 650 W | | Protection class: | Protection class I | | Power connection: | Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) | | Device fuse: | 5 x 20 mm, T 3.15 A fuse replaceable | | Power: | Rated: 300W RMS | | Frequency range: | 40 - 250 Hz | | Sensitivity: | 93 dB (1W/1m) | | Attachment system: | M20 thread | | Circuitry: | Class D | | Control elements: | Phase reversal switch | | Controls: | Limiter | | Status LED: | Limit, power, signal | | Connections: | Input: line via 2 x 3-pin XLR Output: line via 2 x 3-pin XLR Output: high-pass via 2 x 3-pin XLR | | Crossover frequency: | 80-200 Hz | | Speaker: | 1 x woofer 12" Voice coil lows 2.5" | | Type of speaker: | Subwoofer | | Type of construction: | Vented | | Carrying handle: | 1 pc/pcs | | Material: | MDF (medium density fiberboard), 15 mm | | Color: | Black, textured coating, painted | | Dimensions: | Width: 50 cm Depth: 57.5 cm Height: 45 cm | | Weight: | 22.70 kg |

| | |
| | |
