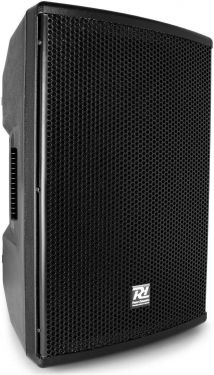

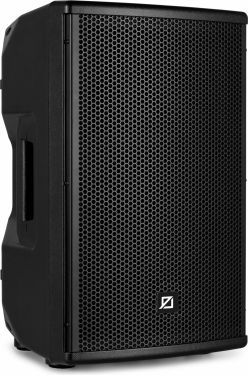

The PD4 series is a high-end speaker with 2 amplifiers for great performance. The low-frequency is powered by a class-D amplifier, while the high-frequency gets its power from a class-AB amplifier. The PD4 features a built-in DSP with 4 preset modes for speech, PA, sub and monitor sound settings. In sub mode the speaker can be used as a top in combination with a subwoofer. This series has been designed in a polypropylene construction both to handle the power and still lightweight enough for mobile use. The perfect speaker for any DJ or live-performer but also suitable for monitor use or club installation. - 800W Bi-amplified 10 speaker
- 1 Compression driver
- Line and mic input
- Built-in 2-way active crossover
- 4 Preset EQ settings
- Efficient class-D amplifier
- BT-receiver for audio streaming
- Angled design for use as stage monitor
- 35mm socket for tripod or pole-mounting
| Product colour | Black | | Speaker type | Active (amplified) | | Output power: Max | 800W | | Output power: RMS | 200W | | Amplifier type | Bi-amp Class D+AB | | Diameter tweeter | 1" | | Diameter midrange | N/A | | Voice coil MF | N/A | | Diameter woofer | 10" | | Voice coil | 2" | | SPL max | 121dB | | SPL @ 1W/1m | 92dB | | Frequency response | 50 - 20.000 Hz | | Crossover frequency | 2.5 - 2.8kHz (24dB/Octave) | | Dispersion | 110° x 60° | | Impedance | 4 Ohm | | Playback options | BT streaming, Line input, Microphone (input) | | Input connections | 3.5mm Jack, 6.3mm Jack, RCA, XLR (3-pin) | | Output connections | XLR (3-pin) | | Supplied features | Speaker pole mount | | Dimensions (L x W x H) | 330 x 310 x 510mm | | Weight (kg) | 11,60 |
