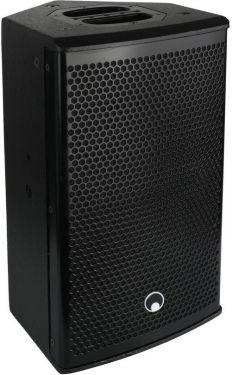

 | Categories |  | |  | Manufacturers | | | | | | Information | | | | | | Omnitronic PAS-208A MK3 2-Way Top, active, DSP 10A92A97
Delivery time: 4-8 workdays. | |
| |
| | Active 8" PA speaker with DSP presets, limiter, 210 W RMS - Active PA speaker system for touring applications and permanent installations
- 2-way bass-reflex system with 20 cm woofer and 2.5 cm compression driver
- DSP-controlled class D amplifier with 210 watts power
- Switchable low cut (120 Hz, 90 Hz)
- Balanced signal input XLR/6.3 mm jack, switchable mic/line
- Optimized for combination with PAS subwoofers
- Trapezoidal, multi-functional multiplex cabinet with monitor shape
- Digital signal processor
- Rugged carrying handle
- Black metal grille with acoustic foam
- With rigging points
- Application possibility: Standing; suspended; monitoring; on tripod
- DSP presets: FLAT; DJ; MONITOR
- Dual flange
- 1 x user manual, 1 x power cord, 1 x compact cabinet speaker
| Power supply: | 230 V AC, 50 Hz | | Power consumption: | 300 W | | Output power: | 210 W RMS | | Power connection: | Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) | | Frequency range: | 75 - 20000 Hz | | Max. SPL: | 118 dB | | DSP: | Digital signal processor | | DSP presets: | FLAT; DJ; MONITOR | | Dispersion angle: | 90° x 60° | | Attachment system: | Dual flange: Ø 35mm (0°/5°) | | Flying points: | 5 x M8 thread; 4 x M10 thread | | Circuitry: | Class D | | Control elements: | Master control | | Controls: | Power on/off transient; limiter | | Status LED: | Signal, power, limit, DSP presets | | Connections: | Input: 3-pin XLR/6.35mm jack (F) combination socket (mounting version)
Link: 2 x 3-pin XLR | | Input channels: | 1 x mono with Mic-line switch via XLR, channel control via Rotary dial | | Speaker: | 1 x compression tweeter highs (1") approx. 2.5 cm with ferrit magnet
Basket material: aluminum
Voice coil compression tweeter highs (1.5") approx. 4 cm
Horn vent (1") approx. 2.5 cm
1 x woofer (8") approx. 20 cm
Voice coil lows (2") approx. 5 cm | | Type of speaker: | Compact cabinet speaker | | Carrying handle: | 1 pc/pcs | | Material: | Birch multiplex | | Color: | Black, textured coating, painted | | Dimensions: | Width: 27 cm
Depth: 46 cm
Height: 26,8 cm | | Weight: | 11,70 kg |




  | | |
| | |
