Alutruss Truss Transport Board Combo incl. 3 Wheels

10A15H81 | 60320307

~~1.569,00NOK~~ 1.419,00NOK

The price includes 25% Danish VAT

In stock
Delivery time: 1 - 3 workdays.

Delivery time: 1 - 3 workdays.

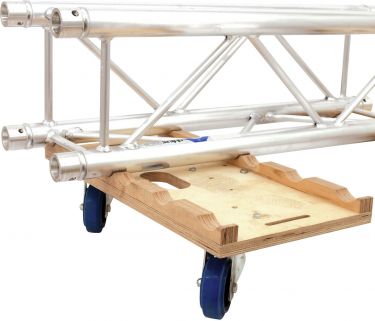

Transport cart with castors for QUADLOCK and TRILOCK truss elements

Transportwagen mit Rollen für QUADLOCK- und TRILOCK-Traversen

The article is delivered dismantled
Practical transport cart made of multiplex wood
Suitable for QUADLOCK and TRILOCK truss elements with 290 mm
Quick and secure stacking with optional stacking ridges
Cut-outs for safety bands for safe transport of the truss elements
Grip hole
12 borings for mounting castors (optional)
The combination of 2 transport carts and 10 stacking ridges allows transport of 12 truss elements (recommended maximum load)
Made in Germany
Double ball race
Housing made of steel, zinc-plated
Roller race hub bearing
Replaceable bolt-on wheel
Carrying capacity: 450 kg per set (4 castors)
Made in Germany
For further information about this product, please refer to the Data Sheet under Downloads
Double-action brake (wheel and swivel)
Double ball race
Housing made of steel, zinc-plated
Roller race hub bearing
Replaceable bolt-on wheel
Carrying capacity: 450 kg per set (4 castors)
Made in Germany
For further information about this product, please refer to the Data Sheet under Downloads
Screw: hexagon screw M8 x30 DIN933 galvanized
Nut: hexagon screw Kl.8 M8 DIN 934 galvanized
Washer: size 8.4 DIN125 electrogalvanized

Weight:	3.60 kg
ALUTRUSS Truss Transport Board Combo for 3 Wheels
Maximum load:	6 truss systems vertical (height approx. 2.10 m)
Dimensions:	Length: 60 cm Width: 30 cm Height: 4.10 cm
Weight:	2.19 kg
ROADINGER Swivel Castor 100mm BLUE WHEEL light blue
Color:	Light blue
Dimensions:	Height: 12.8 cm Diameter: Ø 10 cm
Weight:	0.66 kg
ROADINGER Swivel Castor 100mm BLUE WHEEL with brake
Weight:	0.93 kg
ROADINGER Bolt Set for Wheels
Weight:	0.09 kg
