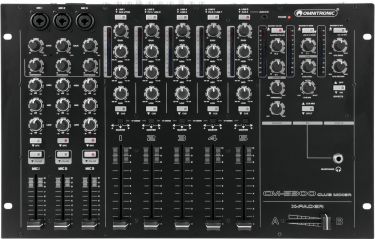

Omnitronic CM-5300 Club Mixer

10A15K68 | 10006950

~~8.369,00NOK~~ 7.589,00NOK

Prisen er inkl. 25% mva

På lager
Leveringstid: 2 til 5 dager.

Leveringstid: 2 til 5 dager.

PRO 5-channel club mixer

Professioneller 5-Kanal-Club-Mixer

High-grade stereo mixer for clubs and numerous mobile PA applications
5 stereo input channels with gain control, 3-band kill EQ (+12/ -26 dB) and 10-digit LED level meter
Front panel AUX input
Rear stereo input FOH for stage mixers
Smooth dual-rail channel input faders (60 mm/100 mm)
3 microphone input channels with front combo connector
Gain control, peak LED, 3-band EQ and on air switch per microphone channel
One-knob compressor per microphone channel
2-parameter adjustable auto talkover for automatic music level reduction when microphone is used
Fully assignable smooth dual-rail crossfader (45 mm)
Master section with two separately controllable stereo outputs, output 2 switchable to mono
10-digit stereo LED level meter, switchable between both master outputs
Balanced XLR and RCA outputs
Additional mono zone output (with switchable 80Hz HPF) which can be routed to the master bus or channel 5
10-digit LED level meter for the zone output
Mono subwoofer output with integrated active crossover (frequency/level adjustable)
All outputs with rear-side maximum level setting controls
Adjustable effects send/return path, assignable to mic or master bus
PFL section with PFL/master mix control and cue mix/split option
Record output, independent of the master
(19) 48.3 cm rack installation 7 U
For application areas such as: Clubs/dancing school; installation; mobile djs / entertainer; restaurants, bars and hotels
1 x mixer, 1 x power cord, 1 x user manual

Power supply:	115/230 V AC, 50/60 Hz
Power consumption:	25 W
Protection class:	Protection class I
Power connection:	Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
Frequency range:	20 - 20000 Hz
S/N ratio:	>82 dB line
THD:	Line <0.05 % at 1 kHz
Housing color:	Black
Control elements:	Cue mix split function, power switch, crossfader, regular talkover, FX send/returne control
Status LED:	Power, chanal level meter, switchable master level meter, CUE, chanal source; peak, ON AIR, routing
Connections:	Input: microphone via 3 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version) Input: line via 6 x stereo RCA Input: line/phono via 2 x stereo RCA Input: AUX via 2 x 6.3-mm-jack (bal.) Input: AUX via 1 x 3.5 mm jack (stereo) mounting version Input: FX via 1 x 6.3 mm jack socket (stereo) mounting version Output: master via 4 x 3-pin XLR Output: master via 2 x stereo RCA Output: zones via 1 x 3-pin XLR Output: rec. via 1 x stereo RCA Output: subwoofer via 1 x 3-pin XLR Output: FX via 1 x 6.3 mm jack socket (stereo) mounting version Output: headphones via 1 x 3.5 mm jack (stereo) mounting version
Channels:	Input chanel: 2 x stereo with line-AUX switch via RCA or jack plug, channel control via 100mm fader, 3-band tone control EQ, gain control, CUE switch, crossfader selector switch Input chanel: 2 x stereo with line-line/phono switch via RCA, channel control via 100mm fader, 3-band tone control EQ, gain control, CUE switch, crossfader selector switch Input chanel: 1 x stereo with line-line switch via RCA, channel control via 100mm fader, 3-band tone control EQ, gain control, CUE switch, crossfader selector switch Microphon chanal: 3 x mono via Combination socket (XLR/jack), channel control via 60mm fader, 3-band tone control EQ, gain control, adjustable single-knob compressor, ON AIR switch, FX routing switch Master output: 1 x stereo via XLR or RCA, channel control via rotary dial, level attenuator Master output: 1 x mono + stereo via RCA or jack plug, channel control via rotary dial, level attenuator, stereo/mono switch Zone output: 1 x mono via XLR, channel control via rotary dial, source selector, level attenuator, low cut switch Subwoofer output: 1 x mono via XLR, level attenuator, hi-cut control Headphones output: 1 x stereo via jack, channel control via rotary dial, cue mix split function
Housing design:	(19") 48.3 cm rack installation 7 U
Dimensions:	Width: 48.3 cm Depth: 10.6 cm Height: 32.8 cm
Weight:	6.00 kg
