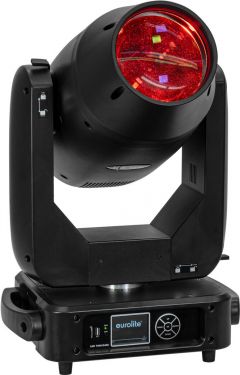

Eurolite LED TMH-S400 CMY Moving Head Beam/Spot/Wash
10B06B66
26.579,00NOK24.309,00NOK
Prisen er inkl. 25% mva
På lager Leveringstid: 2 til 5 dager.
Leveringstid: 2 til 5 dager.
LED moving head hybrid with 400 W COB LED, color wheel, CMY color mixing, static and rotating gobo wheel, prisms, focus, zoom and frost
1 powerful LED 400 W COB (chip-on-board) cold white (CW)
Positioning within 540° PAN, 220° TILT
Auto position correction (feedback)
Exact positioning (16 bit resolution)
Color wheel; gobo wheel with static gobos; gobo wheel with rotating gobos; frost filter; zoom motor driven; focus motor-driven; prism 6-fold rotating linear; prism 8-fold rotating
Dimmer curves adjustable; frost filter
Spot effect
CMY color mixing for indefinite color variations
Color wheel with 12 dichroic filters plus open
Gobo wheel with rotating gobos, 7 gobos and open slot-in gobo system for easy gobo replacement
Shake effect
Gobo indexable
Gobo wheel with static gobos, 12 gobos and open shake effect
The device is cooled by cooling fan at the base; temperature-controlled fan at the Head
Control via DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); stand-alone; RDM; master/slave function
Flicker-free
DMX fail mode (hold; zero values)
RDM For bidirectional communication over the DMX line
With a beam angle of 6° - 32°
With omega bracket
Multicolor touchscreen display
2 Rugged carrying handles
4 x rubber feet
Mains input and output for power linking up to 4 units
For application areas such as: Wedding/gala/events; mobile use; stage; concerts/FoH's
Application possibility: Standing; suspended
1 x moving light, 1 x user manual, 1 x power cord, 2 x omega bracket
Power supply:
100-240 V AC, 50/60 Hz
Power consumption:
460 W
IP classification:
IP20
Protection class:
Protection class I
Power connection:
Mains input via P-Con (blue), mounting version power supply cord with safety plug
Cable construction:
3 x 1,0 mm² H05VV-F
Power output:
P-Con (gray), mounting version
Fuse:
5 x 20 mm, T 5 A fuse replaceable
Lamp type:
LED lamp
LED type:
1 x 400 W COB (chip-on-board) cold white (CW)
Max. TILT movement:
220° exact positioning (16 bit resolution) auto position correction (feedback)
Max. PAN movement:
540° exact positioning (16 bit resolution) auto position correction (feedback)
Flash rate:
0,3 - 19 Hz
Equipment:
Color wheel; gobo wheel with static gobos; gobo wheel with rotating gobos; frost filter; zoom motor driven; focus motor-driven; prism 6-fold rotating linear; prism 8-fold rotating
Color generation:
CMY color mixing for indefinite color variations
Color generation:
Color wheel with 12 dichroic filters plus open
Gobos:
Gobo wheel with rotating gobos, 7 gobos and open Outside diameter 22mm Image diameter 15mm Slot-in gobo system for easy gobo replacement Shake effect Gobo indexable Gobo wheel with static gobos, 12 gobos and open Shake effect
DMX channels:
22; 25
DMX input:
3-pin XLR (M) mounting version
DMX output:
3-pin XLR (F) mounting version
Cooling:
1 x cooling fan at the base 2 x temperature-controlled fan at the Head
Control:
DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); stand-alone; RDM; master/slave function
Projection:
Flicker-free
PWM frequency:
16000 Hz
DMX fail mode:
Hold; zero values
DMX features:
RDM For bidirectional communication over the DMX line
På lager
