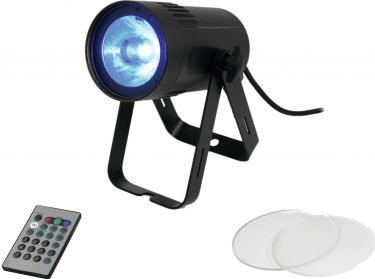

Pinspot with 15 W COB LED, beam angles 4°/6°/20° (frost filter)
Pinspot mit 15-W-COB-LED, Abstrahlwinkel 4°/6°/20° (Frostfilter)
Additional frost filter provides a wide, soft and homogeneous light
1 powerful LED 15 W high-power 4in1 QCL RGBW (homogenous color mix)
Color blend stepless; color change adjustable; color fade adjustable; Dimmer electronic; Dimmer speed (step response) adjustable
Strobe effect
4 integrated show programs
The device is cooled by passive convection cooling
Control via stand-alone; DMX; IR remote control; sound to light via microphone; RDM; master/slave function
Preprogrammed in Light´J; LED PC-Control 512; EASY SHOW 1; LED EASY OPERATOR 4x4; LED EASY OPERATOR 4x6; LED EASY OPERATOR DELUXE; Light Captain; EASY SHOW 2; EASY SHOW 3; Colorchief
Flicker-free
With a beam angle of 4°
With double bracket
OLED display
Mains input and output for power linking up to 8 units
For application areas such as: Clubs/dancing school; party room; mobile djs / entertainer; restaurants, bars and hotels
Silent operation
Application possibility: Standing; suspended; on stand
1 x spotlight, 1 x power cord, 1 x remote control, 2 x frost filter, 1 x lamp clamping ring, 1 x user manual
Power supply:
100-240 V AC, 50/60 Hz
Power consumption:
17 W
Protection class:
Protection class I
Power connection:
Mains input via IEC (M) power supply cord with safety plug (provided)
Power output:
1 x IEC (F)
Lamp type:
LED lamp
LED type:
1 x 15 W high-power 4in1 RGBW (homogenous color mix)
DMX channels:
4; 6; 7
DMX input:
1 x 3-pin XLR (M) mounting version
DMX output:
1 x 3-pin XLR (F) mounting version
Cooling:
Passive convection cooling
Control:
Stand-alone; DMX; IR remote control; sound to light via microphone; RDM; master/slave function
Fixtures available for:
Light´J; LED PC-Control 512; EASY SHOW 1; LED EASY OPERATOR 4x4; LED EASY OPERATOR 4x6; LED EASY OPERATOR DELUXE; Light Captain; EASY SHOW 2; EASY SHOW 3; Colorchief
Projection:
Flicker-free
Beam angle (1/2 peak):
4° 6° 20°
Beam angle (1/10 peak):
7° 11° 35°
Housing color:
Black
Attachment system:
Double bracket
Display type:
OLED display
Material:
Aluminum casting
Dimensions:
Width: 13.5 cm Depth: 19 cm Height: 22 cm
Weight:
1.42 kg
Noise classification:
Class 0 (no noise at all)
Mounting bracket
Diameter mounting holes:
1 x Ø10mm; 2 x Ø3mm
Material:
Aluminum, 3 mm
Power cord
Cable construction:
3 x 1.0 mm² H05VV-F
Cable length:
Approx. 1.3 m
Remote control
Battery:
1 x button cell 3.0 V CR2025 lithium manganese built-in
