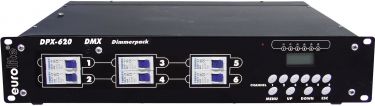

Digital 6-channel dimmer pack Digitales 6-Kanal Dimmerpack - Universal dimmer pack for professional use
- Can be operated 1-phase or 3-phase
- DMX control or analog control possible
- The DMX-starting address can be adjusted on the device
- Synchronization of several devices possible via DMX
- Adjusting the lamp pre-heat
- With automatic circuit breaker per channel
- Channel-outputs on the rearpanel via pole connectors
- Only for professional use
- Preprogrammed 12 scenes/chases
- Control via analog 0-10 V; stand-alone; DMX
- (19) 48.3 cm rack installation 2 U
- For application areas such as: Trade fair and shop fitting; stage; theater; rental
- Very quiet working noise
- 1 x device, 1 x user manual
| Power supply: | 230/380 V AC, 50 Hz | | Output power: | Max. 4600 W per channal Max. 27600 W | | Output current: | Max. 120 A | | Power connection: | Mains input via screw terminal | | Power output: | Screw terminal | | Power output fuse per channel: | C 20 A fuse resettable | | Programs: | Preprogrammed 12 scenes/chases | | DMX channels: | 6 | | DMX input: | 3-pin XLR (M) mounting version | | DMX output: | 3-pin XLR (F) mounting version | | Control: | Analog 0-10 V; stand-alone; DMX | | Control channels: | 6 | | Color: | Black | | Housing design: | (19") 48.3 cm rack installation 2 U | | Dimensions: | Width: 48.3 cm Depth: 42 cm Height: 8.9 cm | | Weight: | 7.70 kg | | Noise classification: | Class 1 (very slight noise, suitable for noise-sensitive environments) |

|
