 | Categories |  | |  | Manufacturers | | | | | | Information | | | | | | Omnitronic TRM-402 4-channel Rotary Mixer 10A24A45 | 10355930
 |  In stock
Delivery time: 1 - 3 workdays. |
Delivery time: 1 - 3 workdays. | |
| |

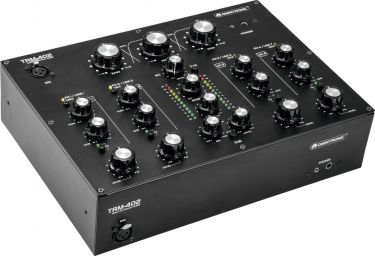

| | 4-channel rotary mixer with 3-band frequency isolator for DJs 4-Kanal-Rotary-Mixer mit 3-Band-Frequenzisolator für DJs - Classic rotary mixer with 4 input channels and integrated 3-band frequency isolator for DJs
- Gain control, 2-way equalizer (highs/lows) and phono/line switching per channel
- Dedicated boost and kill cut
- Kill cut feature allows DJs to completely remove low, mid and high frequencies for amazing mixing
- Classic ALPS potentiometers (Blue Velvet RK27)
- High-grade components ensure long life and excellent sound quality
- DJ microphone input with separate level control
- Prefader listening to input channels and the master output via adjustable headphones output, with cue mix/split function
- 12-digit stereo LED level meter and master level control
- Booth output with separate level control
- Dual inputs for DJ microphone and headphones on the top and front panel
- Outputs: master and booth (XLR/RCA L/R), record (stereo RCA)
- Desktop console housing
- For application areas such as: Clubs/dancing school; mobile use; mobile djs / entertainer; homerecording and studios
- 1 x device, 1 x power cord, 1 x user manual
| Power supply: | 100-240 V AC, 50/60 Hz | | Power consumption: | 7.2 W | | Protection class: | Protection class I | | Power connection: | Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) | | Frequency range: | 20 - 20000 Hz microphone 20 - 20000 Hz line 40 - 18000 Hz phono | | S/N ratio: | >77 dB phono >80 dB microphone >85 dB line | | THD: | Line <0.03 % at 1 kHz Phono <0.1 % at 1 kHz | | Gain: | Microphone 44 dB Line 20 dB Phono 60 dB to +75 dB | | Isolators: | Master Gain:- ∞ bis +9 Low/mid 300 Hz, 18db/oct , Butterworth Mid/high 4000 Hz, 18db/oct , Butterworth | | Control elements: | Power switch, source selector, cue mix split function, tone control | | Status LED: | Power, master level meter, chanal source, CUE, microphone | | Connections: | Input: line via 4 x stereo RCA Input: line/phono via 4 x stereo RCA Input: microphone via 2 x 3-pin XLR Output: headphones via 2 x 6.3 mm jack socket (stereo) mounting version Output: headphones via 2 x 3.5 mm jack (stereo) mounting version Output: rec. via 1 x stereo RCA Output: booth via 2 x 3-pin XLR Output: booth via 1 x stereo RCA Output: master via 2 x 3-pin XLR Output: master via 1 x stereo RCA | | Channels: | Input chanel: 4 x stereo with line-line/phono switch via RCA, channel control via rotary, 2-band tone control EQ, gain control, phono gain rotary, CUE switch, source selector Microphon chanal: 1 x mono via XLR, channel control via rotary dial, ON AIR switch Booth output: 1 x stereo via XLR or RCA, channel control via rotary dial Master output: 1 x stereo via XLR or RCA, channel control via rotary dial Headphones output: 1 x stereo via jack, channel control via rotary dial, cue mix split function | | Max. level: | Output: +22 dBu | | Material: | Metal | | Color: | Black | | Housing design: | Desktop console housing | | Dimensions: | Width: 33 cm Depth: 24.7 cm Height: 10.7 cm | | Weight: | 4.05 kg |


| | | | |
