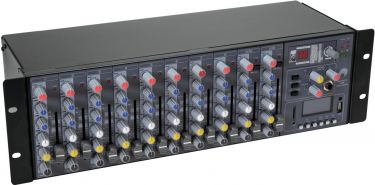

| | PRO 19" mixer with 12 channels, DSP FX unit and MP3 player Professioneller 19"-Mixer mit 12 Kanälen, DSP-Effekteinheit und MP3-Player - Built-in USB audio interface allows recordings and playback of digital audio files with a computer (PC and Mac)
- 6 mono input channels with gain control, 2-way EQ, pan control and channel fader
- 2 stereo input channels with 2-way EQ, balance control and channel fader
- 8 channel inserts
- Tape input and output
- Separate main mix and control room outputs
- 2 AUX send outputs
- Adjustable headphones output
- +48 V phantom power, can be switched centrally
- 4-digit stereo LED level display
- (19) 48.3 cm rack installation 3 U
- Digital signal processor 24 bit with 16 effects
- Monochrome 2 digit 7-segment LED display
- For application areas such as: Clubs/dancing school; stage; theater; concerts/FoH's; rental
- Control via IR remote control
- Monochrome LCD display
- 1 x mixer, 1 x user manual, 1 x power cord, 1 x remote control, 1 x battery
| Power supply: | 100-240 V AC, 50/60 Hz | | Power consumption: | 27 W | | Protection class: | Protection class I | | Power connection: | Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) | | Device fuse: | 5 x 20 mm, T 0.5 A fuse replaceable | | Frequency range: | 20 - 20000 Hz | | S/N ratio: | >89 dB | | THD: | <0.05 % at 1 kHz | | DSP: | Digital signal processor 24 bit with 16 effects | | Audio player: | USB + SD | | Display type: | Monochrome 2 digit 7-segment LED display | | Control elements: | Phantom power switch, audio player, encoder | | Status LED: | Power, master level meter, clip, phantom power | | Connections: | Input: microphone via 8 x 3-pin XLR Input: line via 12 x 6.3 mm jack socket (mono) mounting version Input: 2-Track via 1 x stereo RCA Input: AUX returns via 2 x 6.3 mm jack socket (mono) mounting version Output: AUX sends via 2 x 6.3 mm jack socket (stereo) mounting version Output: 2-Track via 1 x stereo RCA Output: master via 2 x 3-pin XLR Output: headphones via 1 x 6.3 mm jack socket (stereo) mounting version Output: control room via 2 x 6.3 mm plug (unbal.) Insert: 8 x 6.3 mm jack socket (stereo) mounting version Link: line via 1 x USB B (F) mounting version | | Channels: | Input chanel: 8 x mono via XLR or jack, channel control via fader, 2-band tone control EQ ±15dB at 80Hz/12kHz, 2 Send/AUX, gain control, panoramacontol Input chanel: 1 x stereo with line-USB switch via jack, channel control via fader, 2-band tone control EQ ±15dB at 80Hz/12kHz, 2 Send/AUX, gain control, balancecontrol Input chanel: 1 x stereo with line-player switch via jack, channel control via rotary dial, 2-band tone control EQ ±15dB at 80Hz/12kHz, 2 Send/AUX, gain control, balancecontrol Master output: 1 x stereo via XLR, channel control via rotary dial Headphones output: 1 x stereo via jack, channel control via rotary dial | | Material: | Metal | | Color: | Black | | Housing design: | (19") 48.3 cm rack installation 3 U | | Dimensions: | Width: 48.3 cm Depth: 18 cm Height: 13.35 cm | | Weight: | 4.07 kg | | Remote control | | | Battery: | 1 x button cell 3.0 V CR2025 lithium manganese built-in | | Audio player | | | Control: | IR remote control | | Display type: | Monochrome LCD display | | Available storage media: | SD cards/USB devices | | USB port: | 1 x USB 1.1, type B 1 x type A |

 | | | | |
