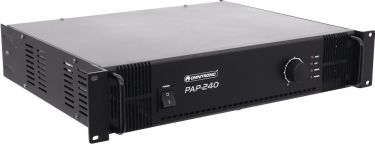

 | Categories |  | |  | Manufacturers | | | | | | Information | | | | | | Omnitronic PAP-240 PA Amplifier 10A20F03 | 80709808
Delivery time: 4-8 workdays. | |
| |
| | PA power amplifier, 240 W RMS ELA-Verstärker, 240 Watt - 1 line input (optionally XLR or 6.3 mm jack)
- 1 feed-through output (optionally XLR or 6.3 mm jack)
- Master control
- LED indicators for power, level, clip and fault
- Load detection and power control
- (19) 48.3 cm rack installation 2 U
- Highly efficient air flow from front to rear
- The device is cooled by temperature-controlled fan
- For application areas such as: Installation; restaurants, bars and hotels; sports centres/gyms
- 1 x amplifier, 1 x user manual
| Power supply: | 230 V AC, 50 Hz | | Output power: | 240 W RMS | | Power connection: | Fixed power supply cord with safety plug | | Frequency range: | 60 - 16000 Hz | | S/N ratio: | >90 dB line | | THD: | <0.5 % at 1 kHz | | Cooling: | 1 x temperature-controlled fan , air flow from front to rear | | Impedance: | 4-16 ohms; public address systems 100V; Public address systems 70V | | Circuitry: | Class AB | | Control elements: | Level control, power switch | | Controls: | Softstart; overheat; overload; short-circuit; DC voltage | | Status LED: | Signal, power, fault, clip | | Connections: | Input: line via 1 x 6.3 mm jack socket (mono) mounting version Input: line via 1 x 3-pin XLR 0.8 V Output: line via 1 x 6.3 mm jack socket (mono) mounting version Output: line via 1 x 3-pin XLR Output: speaker via screw terminal | | Material: | Metal | | Color: | Black | | Housing design: | (19") 48.3 cm rack installation 2 U | | Dimensions: | Width: 48.3 cm Depth: 38.5 cm Height: 8.9 cm | | Weight: | 9.77 kg |

 | | | | |
