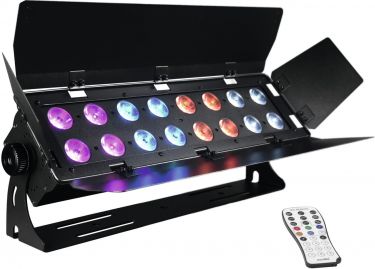

Light effect bar with RGBAW+UV color mixing, with 5-pin QuickDMX connector
Lichteffektleiste mit RGBAW+UV-Farbmischung, mit 5-pol-QuickDMX-Buchse
4 segments for dynamic running lights
4 barn doors to avoid blinding the audience and for protection during transport
16 powerful LEDs 12 W high-power 6in1 HCL RGBWA/UV (homogenous color mix)
Color blend stepless; color change adjustable; color fade adjustable; Dimmer electronic
Strobe effect; UV effect
Integrated show programs
Direct color selection for 26 preset colors
The device is cooled by passive convection cooling
Control via stand-alone; DMX; IR remote control; sound to light via microphone; QuickDMX via 5-pin XLR (M) mounting version (optional); master/slave function
Preprogrammed in LED PC-Control 512; EASY SHOW 1; LED EASY OPERATOR 4x6; LED EASY OPERATOR DELUXE; Light Captain; EASY SHOW 2; EASY SHOW 3; Colorchief
Flicker-free
With a beam angle of 23°
With mounting bracket
4 digit 7-segment LED display
Mains input and output for power linking up to 8 units
For application areas such as: Wedding/gala/events; stage; mobile djs / entertainer; small rental
Silent operation
Application possibility: Standing; suspended; on stand
1 x spotlight, 1 x power cord, 1 x barndoor, 1 x remote control, 1 x battery, 1 x user manual
Power supply:
100-240 V AC, 50/60 Hz
Power consumption:
70 W
IP classification:
IP20
Protection class:
Protection class I
Power connection:
Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
Power output:
1 x P-Con (gray), mounting version
Fuse:
T 1 A fuse replaceable
Lamp type:
LED lamp
LED type:
16 x 12 W high-power 6in1 HCL RGBWA/UV (homogenous color mix)
Flash rate:
0.25 - 16 Hz
DMX channels:
2; 3; 5; 6; 8; 11; 24; 32
DMX input:
1 x 3-pin XLR (M) mounting version
DMX output:
1 x 3-pin XLR (F) mounting version
Cooling:
Passive convection cooling
Control:
Stand-alone; DMX; IR remote control; sound to light via microphone; QuickDMX via 5-pin XLR (M) mounting version (optional); master/slave function
Preprogrammed in:
LED PC-Control 512; EASY SHOW 1; LED EASY OPERATOR 4x6; LED EASY OPERATOR DELUXE; Light Captain; EASY SHOW 2; EASY SHOW 3; Colorchief
Projection:
Flicker-free
PWM frequency:
4700 Hz
Beam angle:
23°
Beam angle (1/2 peak):
23°
Beam angle (1/10 peak):
42°
Wavelength:
Ultra violet (UV) 400 nm
Housing color:
Black
Attachment system:
Mounting bracket
Display type:
4 digit 7-segment LED display
Material:
Metal, painted; aluminum casting
Dimensions:
Width: 59.1 cm Depth: 19.9 cm Height: 30.3 cm
Weight:
5.35 kg
Noise classification:
Class 0 (no noise at all)
Photobiological safety:
Risk Group 0
Mounting bracket
Diameter mounting holes:
3 x Ø11mm; 4 x Ø10mm
Material:
Metal, 3 mm
Power cord
Cable construction:
3 x 1.0 mm² H05VV-F
Cable length:
Approx. 1.2 m
Barndoor
Material:
Metal, 0.8 mm
Remote control
Battery:
1 x button cell 3.0 V CR2025 lithium manganese built-in
