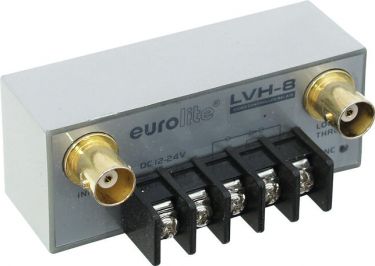

 | Categories |  | |  | Manufacturers | | | | | | Information | | | | | | Eurolite LVH-8 Video controlled relay 10A20B23 | 81013208
Delivery time: 4-8 workdays. | |
| |
| | Video controlled relay Videogesteuertes Relais - Detection of video
- NTSC and PAL compatible
- Bridging or terminated operation
- LED indicator
- 12-24 V DC power supply via block terminals (PSU not included)
- Ultra compact
| Power supply: | 12-24V DC 74 mA | | Connections: | 2 x BNC (F) Screw terminal | | Dimensions: | Width: 7.6 cm Depth: 4.1 cm Height: 3.1 cm | | Weight: | 0.07 kg | | 1 x video input: | 0.5-1 Vpp/75 ohms BNC, ground referenced | | 1 x video output: | Feed-through/ BNC, ground referenced | | Control output: | N/O or N/C contacts | | Relay contacts: | Single-pole, double-throw | | Max. switching power: | 60 W, 125 VA | | Max. switching voltage: | 220 V AC, 250 V DC | | Max. switching current: | 2 A | | Max. continuous switching current: | 3 A |
| | | | |
