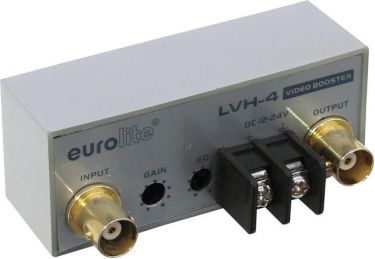

Video line amplifier with equalizer Video-Leitungsverstärker mit Equalizer - Equalizes and compensates for signal losses inherent in long cable runs (max. 600 m)
- 75 ohms input and outputs via BNC plugs
- Separate controls for amplification and equalization
- Ultra compact
| Power supply: | 12-24V DC 30 mA 12-24V AC 30 mA | | S/N ratio: | >70 dB | | Dimensions: | Width: 7.6 cm Depth: 4.1 cm Height: 3.1 cm | | Weight: | 0.07 kg | | 1 x video input: | 1 Vpp/ 75 ohms, BNC | | 1 x video output: | 1 Vpp/ 75 ohms, BNC | | Gain: | adjustable to +5 dB | | Bandwidth: | 10 MHz | | Equalization adjustment: | 0 dB to +4 dB/ 3.58 MHz | | 0 dB to +7 dB/ 5 MHz |
|
