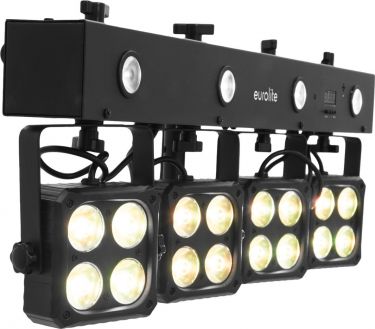

Bar with 4 RGBW spots and 4 white strobe LEDs, with QuickDMX connector (XLR)
Bar mit 4 RGBW-Spots und 4 weißen Strobe-LEDs, mit 5-pol-QuickDMX-Buchse
Crossbar with integrated DMX control unit and stand sleeve
Compact lightweight
Color blend stepless; color change adjustable; colors preset; Dimmer electronic
Strobe effect
The device is cooled by passive convection cooling
Control via stand-alone; DMX; IR remote control; sound to light via microphone; master/slave function; QuickDMX via 5-pin XLR (M) mounting version (optional)
Preprogrammed in LED PC-Control 512; Light Captain; Light´J; EASY SHOW 1; EASY SHOW 2; EASY SHOW 3; Colorchief
Flicker-free
With a beam angle of 9°
With mounting bracket
Monochrome 4 digit 7-segment LED display
Mains input and output for power linking up to 8 units
For application areas such as: Party room; mobile use; mobile djs / entertainer; small rental
Silent operation
Application possibility: On stand
4 powerful LEDs 8 W SMD 9080 4in1 QCL RGBW (homogenous color mix) 4 spots controlled separately
4 powerful LEDs 1 W SMD 8072 cold white (CW) LEDs controlled separately
1 x spotlight, 1 x power cord, 1 x bag, 1 x remote control, 1 x battery, 1 x user manual
Power supply:
100-240 V AC, 50/60 Hz
Power consumption:
80 W
IP classification:
IP20
Power connection:
Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
Power output:
1 x IEC connector (F) mounting version
Fuse:
5 x 20 mm, T 1 A fuse replaceable
Lamp type:
LED lamp
Flash rate:
0.5 - 20 Hz
DMX channels:
3; 4; 8; 21
DMX input:
3-pin XLR (M) mounting version
DMX output:
3-pin XLR (F) mounting version
Cooling:
Passive convection cooling
Control:
Stand-alone; DMX; IR remote control; sound to light via microphone; master/slave function; QuickDMX via 5-pin XLR (M) mounting version (optional)
Preprogrammed in:
LED PC-Control 512; Light Captain; Light´J; EASY SHOW 1; EASY SHOW 2; EASY SHOW 3; Colorchief
Projection:
Flicker-free
PWM frequency:
9000 Hz
Beam angle:
9°
Beam angle (1/2 peak):
9°
Beam angle (1/10 peak):
18°
Housing color:
Black
Attachment system:
Mounting bracket
Display type:
Monochrome 4 digit 7-segment LED display
Material:
Metal; plastic
Dimensions:
Width: 60.5 cm Depth: 14 cm Height: 23 cm
Weight:
4.85 kg
Noise classification:
Class 0 (no noise at all)
Photobiological safety:
Risk Group 0
Spotlight
LED type:
4 x 8 W SMD 9080 4in1 QCL RGBW (homogenous color mix)
Bar
LED type:
4 x 1 W SMD 8072 cold white (CW)
Mounting bracket
Diameter mounting holes:
3 x Ø11mm; 2 x Ø3mm
Material:
Metal, 2 mm
Power cord
Cable construction:
3 x 0.75 mm² H05VV-F
Remote control
Battery:
1 x button cell 3.0 V CR2025 lithium manganese built-in
