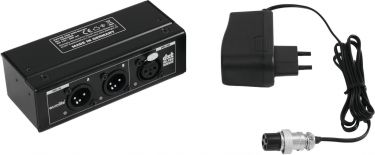

PRO DMX merger to combine 2 DMX signals into 1 Professioneller DMX-Merger um 2 DMX-Signale zu einem zu kombinieren - Pro DMX merger with 2 DMX inputs and 1 DMX output
- Enables two separate consoles to control one DMX system
- DMX modes: LTP, HTP, merge or backup
- Input B can be set to a start address (offset)
- LED indicator for valid DMX signals
- Selectable output frequency 22 Hz/44 Hz
- Built with NEUTRIK connector
- Made in Germany
- For application areas such as: Stage
| Power supply: | 100-240 V AC, 50/60 Hz 12V DC 1000 mA | | Power consumption: | 1 W | | Power connection: | Mains input via 4-pin screw plug connector (M) mounting version power supply cord with AC adapter (provided) | | DMX input: | 2 x 3-pin XLR (M) mounting version | | DMX output: | 1 x 3-pin XLR (F) mounting version | | Use of brands: | Built with NEUTRIK connector | | Dimensions: | Width: 13 cm Depth: 7 cm Height: 4.1 cm | | Weight: | 0.50 kg |


 |
