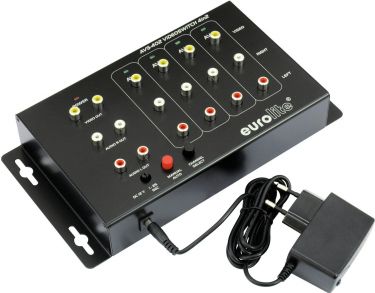

 | Categories |  | |  | Manufacturers | | | | | | Information | | | | | | Eurolite AVS-402 Video switch 4in2 10A20C15 | 81013101
Delivery time: 4-8 workdays. | |
| |
| | 4-way AV switch 4-fach AV-Umschalter - For switching four AV sources (audio, composite video and s-video television signals) up to two television monitors
- 4 inputs (RCA), manually or automatically switchable
- Automatic switching time adjustable from 1 to 25 seconds
- Simultaneous recording to one or two video or DVD recorders
- A HiFi stereo system can be connected via the second output
- For application areas such as: Trade fair and shop fitting; clubs/dancing school; restaurants, bars and hotels
| Power supply: | 100-240 V AC, 50/60 Hz | | Power consumption: | 6.00 W | | Frequency range: | 20 - 100 Hz | | S/N ratio: | >100 dB | | THD: | <0.05 % at 1 kHz | | Dimensions: | Width: 24.2 cm Depth: 12.8 cm Height: 5 cm | | Weight: | 0.75 kg | | Video: | | | 4 x inputs: | 1 Vpp/ 75 ohms, composite RCA | | 2 x outputs: | 1 Vpp/ 75 ohms, composite RCA | | Gain: | 2 V, 1 V (terminated)/ 75 ohms | | Return loss: | >18 dB | | Video bandwidth: | >100 MHz | | Audio: | | | 4 x inputs: | 22 kohms, stereo RCA | | 2 x output: | 1 kohms, stereo RCA | | Gain: | nominal 0 dB | | Channel separation: | >75 dB |
| | | | |
